[FRR16-0305] 0.032" Kynar Aluminum Ridge Roll Roof Flashing | Dark Bronzehttps://docs.kmsheetmetal.com/[frr16-0305]-0032in-kynar-aluminum-ridge-roll-roof-flashing-dark-bronzeThe [FRR16-0305] 0.032" Kynar Aluminum Ridge Roll Roof Flashing in Dark Bronze by K&M Sheet Metal is essential for creating a leak-proof barrier at the peak of your roof. This 10' length is made from durable Kynar aluminum, ensuring long-lasting performance. Made in the USA.FRR16-0305
Flashing metal used on tile, slate and metal roofs. Available in several colors. 0.032" Kynar® Aluminum.
A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.

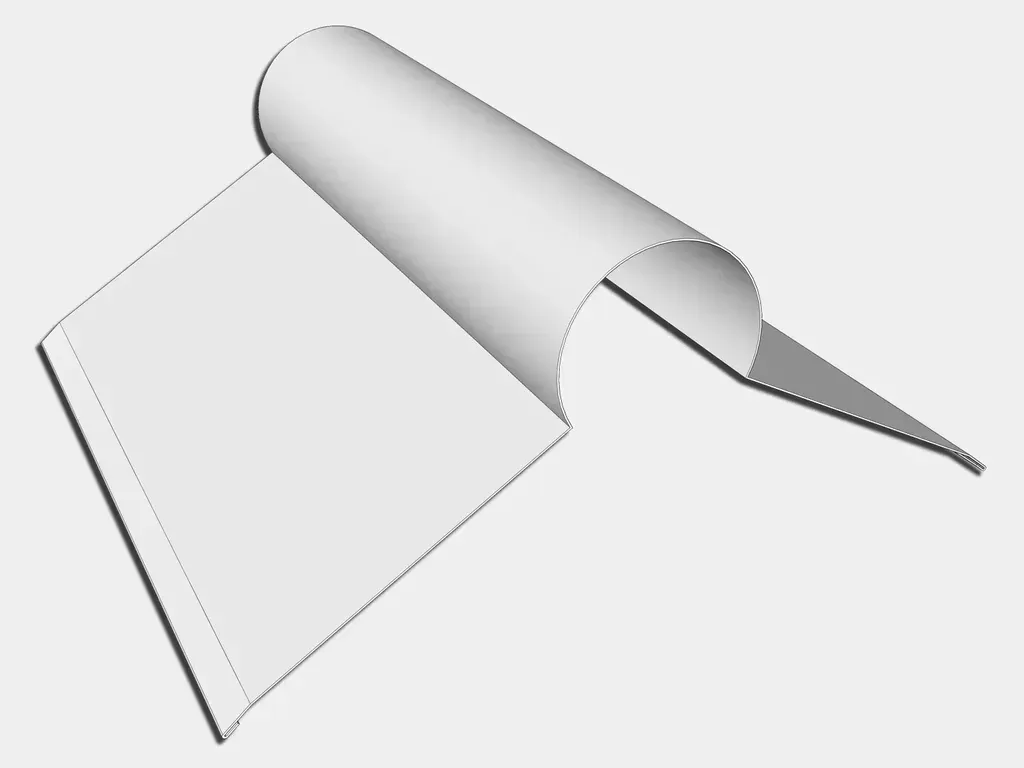

A Ridge Roll is a type of ridge cap with a rounded portion at its very top.
We offer one with a 3" diameter circle. These parts are made to order per your choice of the roof pitch.
Custom profiles and dimension changes can be quoted via email.
Disclaimer: due to limitations in bending, we can only manufacture this
profile up to a 14 pitch. However, due to it's flexibility given by the rounded top,
this can still be used on higher pitches. While installing, push down on the material
to get it to sit correctly,
or manually bend the round portion more prior to installation.
End caps are available for pitches 15, 16, 17 and 18.
Specifications
Material: 0.032" Kynar® Aluminum
10' Lengths
Made to Order
Made in the USA
(A) Nominal / Stock size
Material
(B)
(C)
(D) Closed Hem
(E)
Stock
3"
Copper, Freedom Gray, Lead Coated Copper
5.125"
0.5"
0.25"
2"
18"
3"
Aluminum, Steel, Galvalume and Stainless Steel
4.125
0.5"
0.25"
2"
16"
Roof Ridge Angle
Roof Pitch
Roof Slope
Ridge Angle
1"
4.76°
9.52°
2"
9.46°
18.92°
3"
14.04°
28.08°
4"
18.43°
36.86°
5"
22.62°
45.24°
6"
26.57°
53.14°
7"
30.26°
60.52°
8"
33.69°
67.38°
9"
36.87°
73.74°
10"
39.81°
79.62°
11"
42.51°
85.02°
12"
45°
90°
13"
47.29°
94.58°
14"
49.4°
98.8°
15"
51.34°
102.68°
16"
53.13°
106.26°
17"
54.78°
109.56°
18"
56.31°
112.62°
All dimensions are approximate with ~1/8" tolerance.
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze)
Kynar® Aluminum & Galvalume Steel
Black
Matte Black **24 Gauge Steel Only
Dark Bronze
Medium Bronze
Almond
Bone White
Copper Penny
Charcoal
Special Order Colors
Special Order colors require a minimum 2000 sqf. purchase for coil. Most colors have a 1 sheet minimum per order. Extra freight charges apply.
Patina Green
Teal
Hemlock Green
Forest Green
Hartford Green
Evergreen
Hunter Green
Arcadia Green
Military Blue
Berkshire Blue
Graphite
Interstate Blue
Slate Blue
Award Blue
Burnished Slate
Aged Bronze
Mansard Brown
Burgundy
Terra Cotta
Cardinal Red
Colonial Red
Midnight Bronze
Musket Gray
Sierra Tan
Sandstone
Slate Gray
Cityscape
Granite
Stone White
Anodic Clear
Silversmith
Silver
Champagne
Zinc
Weathered Zinc
Aged Copper
Weathered Steel
More Information
Kynar coated material is supplied by
Petersen (Pac-Clad).
Colors are mostly available in 0.032″ and 0.040″ aluminum as well as 24 gauge galvalume (steel).
Some colors are available in 0.050″ and 0.063″ aluminum as well as 22 gauge galvalume. Material available in sheet or coil format. Pac Clad Sheets measure 48″ x 120″. No minimum purchase, but fees apply. Standard coil widths are 20″ and 24″. Coils can be cut to any custom with from 48″ and under. Fees apply. 2000 sqf minimum purchase.
To learn more about Kynar® PVDF coated materials, please
click here.
